Downloadable drawings for "An Affordable Full-Range Speaker Project" in AudioXpress 6/03

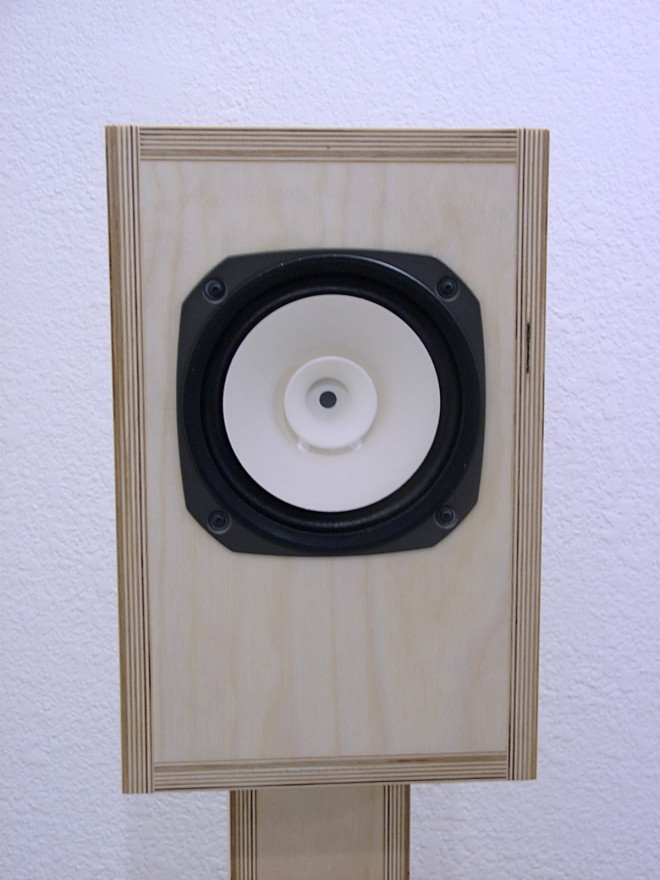

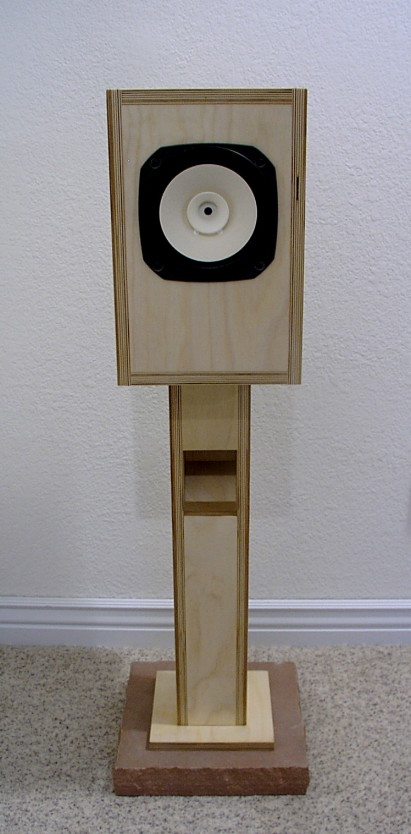

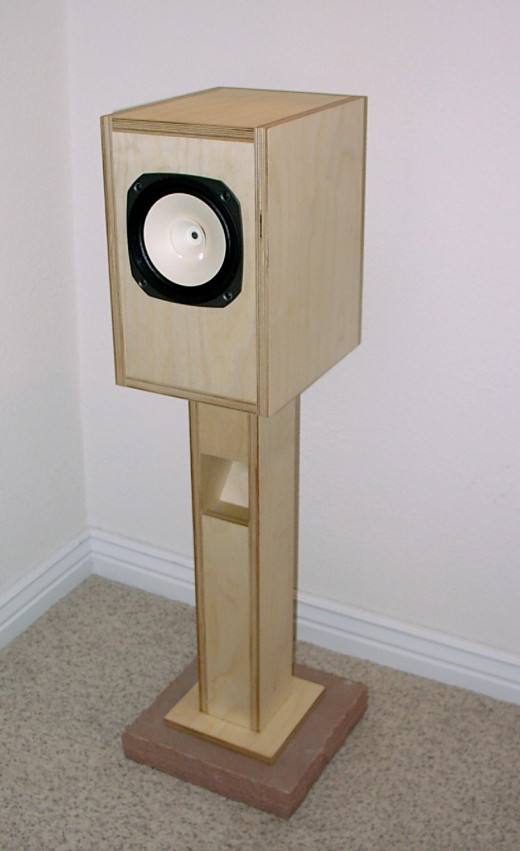

I'm posting the drawings for the FE-164-based full-range speaker project that appeared in AudioXpress, June 2003, for you to download.  If you want the full text of the article, you can get a back issue from AudioXpress, or download it here.

Overall drawing:

AutoCad DWG file (262 kB)

AutoCAD DXF file (689 kB)

PDF file (49 kB)



Individual parts drawing:

AutoCad DWG file (61 kB)

AutoCAD DXF file (118 kB)

PDF file (12 kB)



Sheet cutting drawing:

AutoCad DWG file (44 kB)

AutoCAD DXF file (87 kB)

PDF file (13 kB)
