An AC power delay circuit

For the PL-177 amp, I needed a circuit to delay the application of B+ power until the tubes have warmed up.

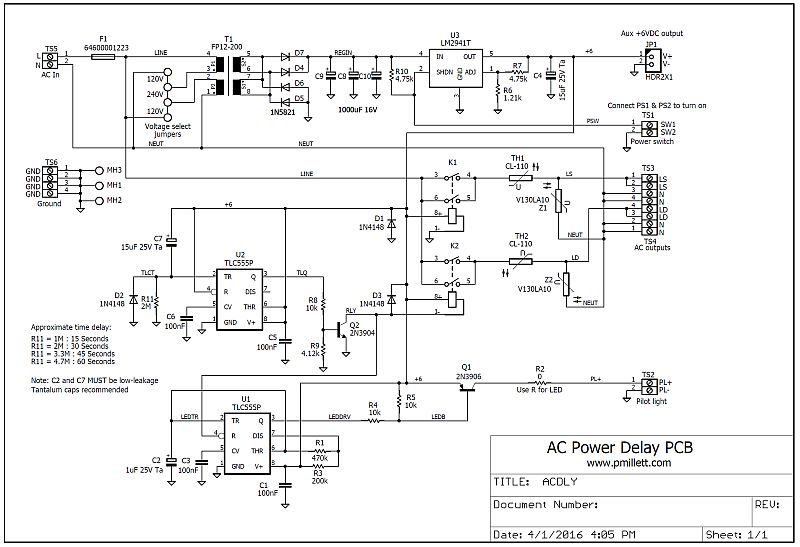

Since I used a switching power supply for heaters and a separate HV supply, I wanted to switch the AC power to the two systems, as opposed to messing with the high voltage B+.  So I designed this:



(Download it in PDF)

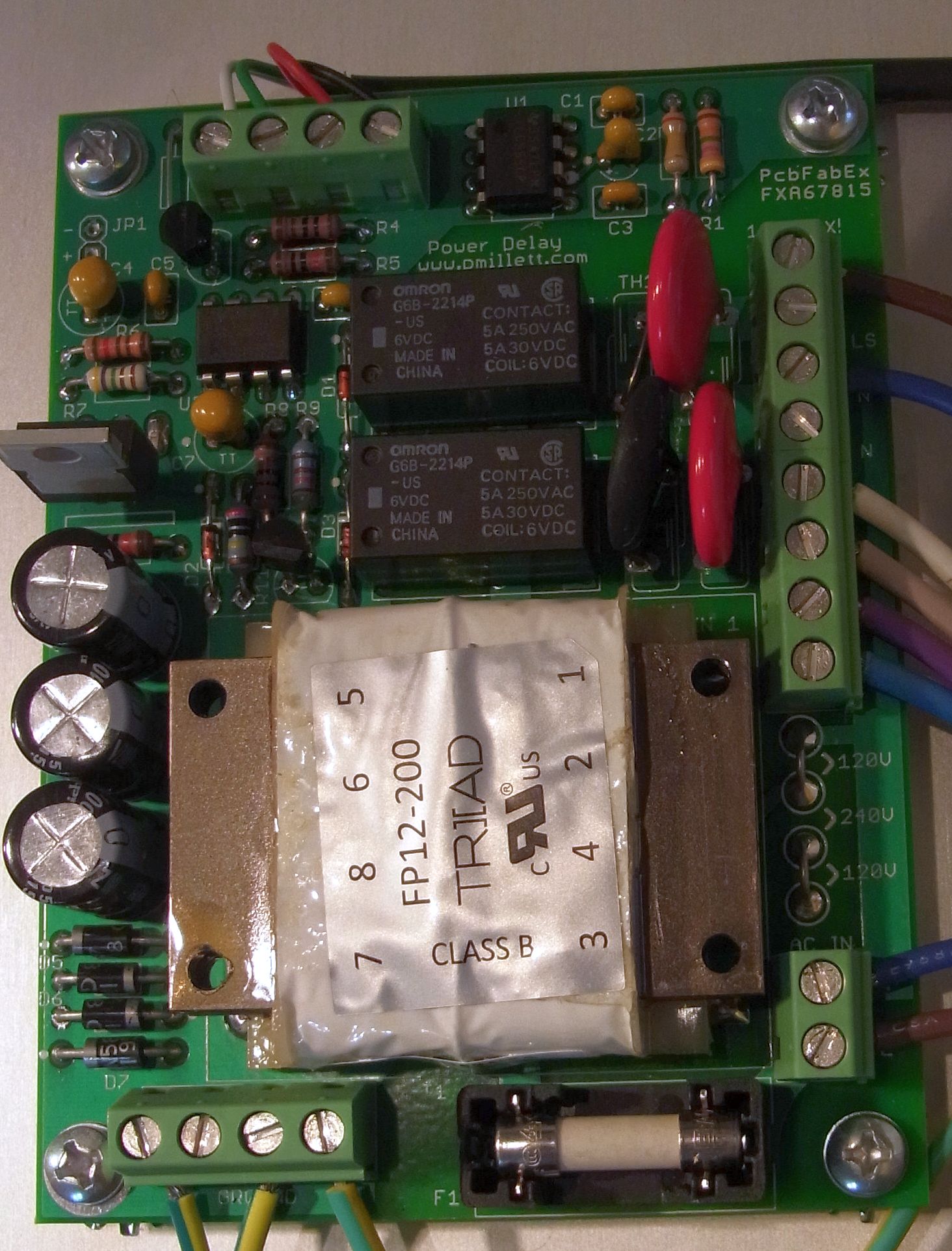

It is similar to the muting relay delay circuit I built earlier, but it has larger power relays that can switch up to 10A at line voltage.  It also integrates a small "housekeeping" power supply, to run the timer and power relays.  It also integrates inrush limiters and MOVs.  Sorry, I don't have a parts list (BOM) completed, but it is pretty obvious from the schematic.  The power transformer is a Triad FP12-200, and the power relays are Omron G6B-2214P-6VDC.

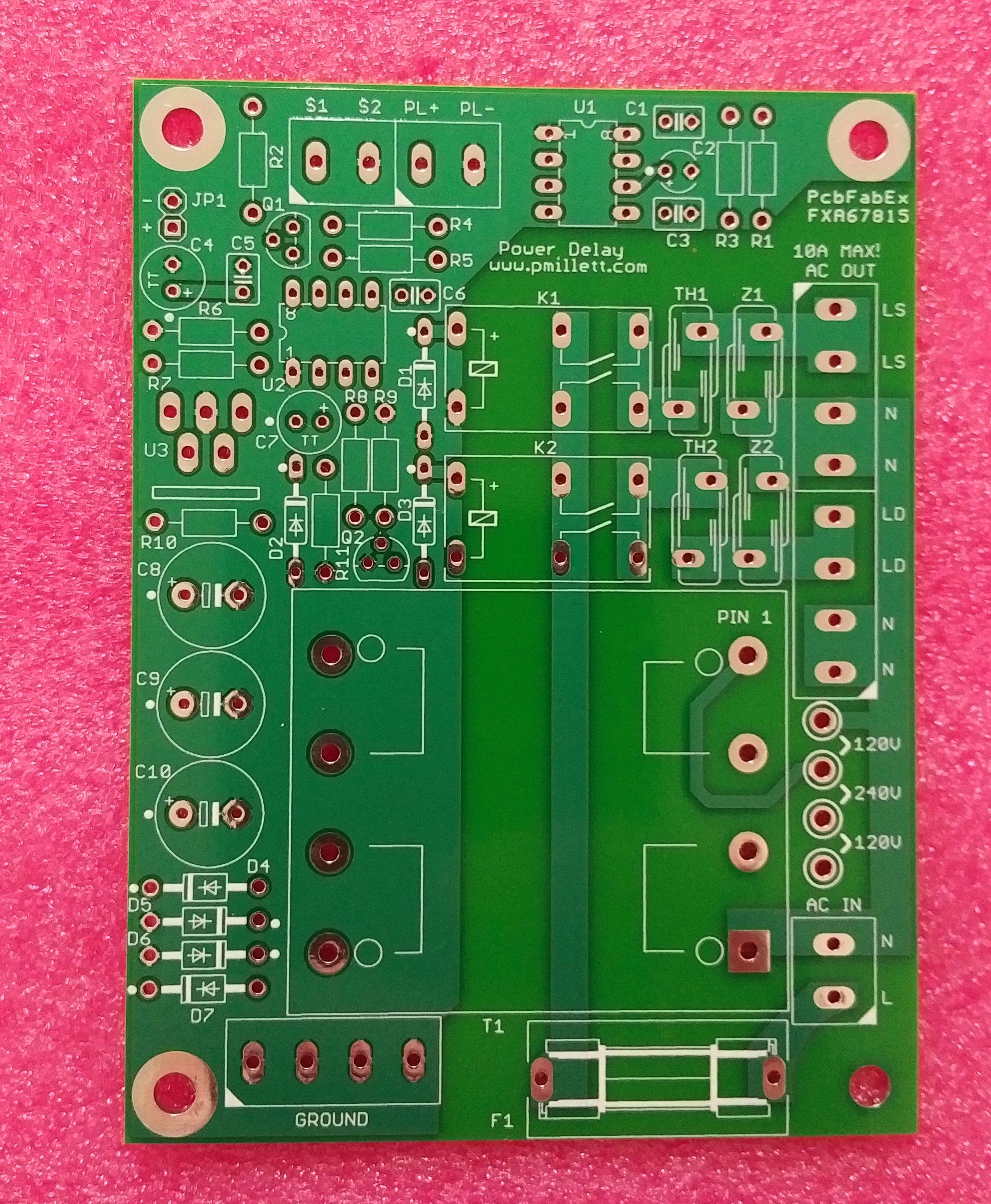

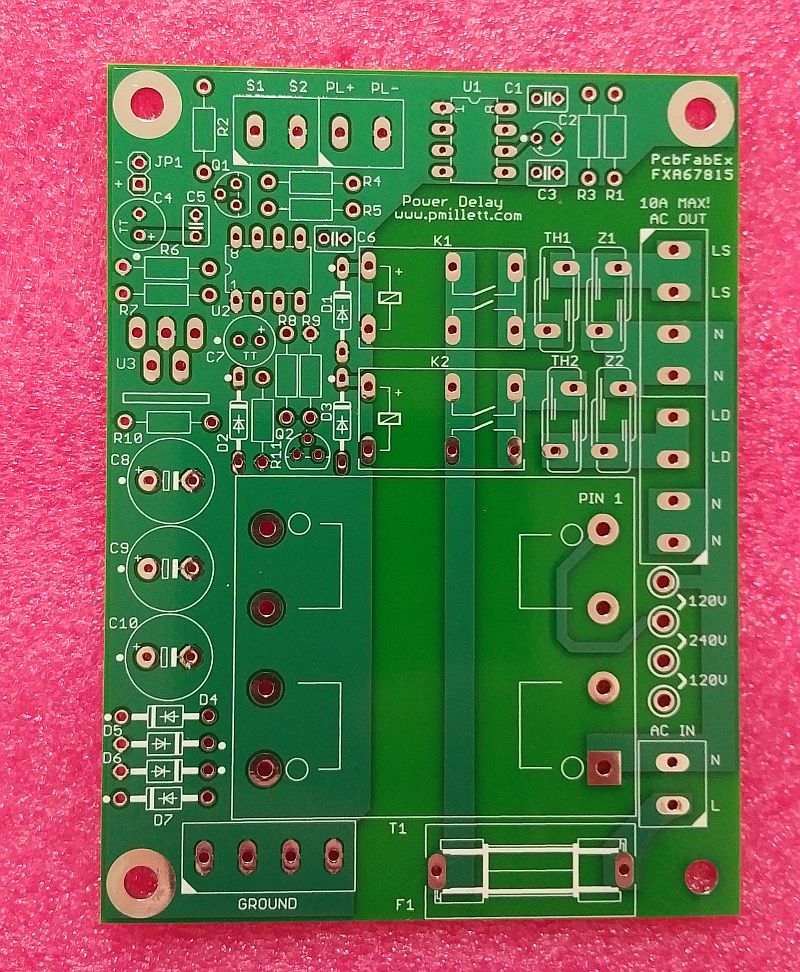

I will make these PCBs available in my eBay store.
